H2P-104s/H2P-74s

H2P-104s H2P-74s

H2P-104s/H2P-74s

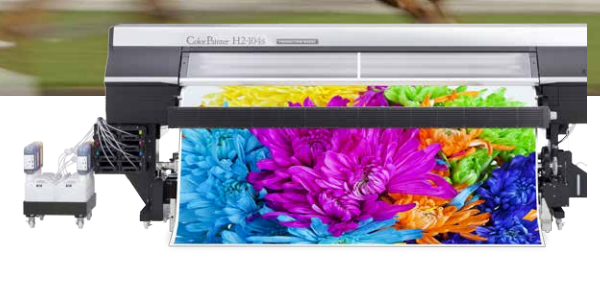

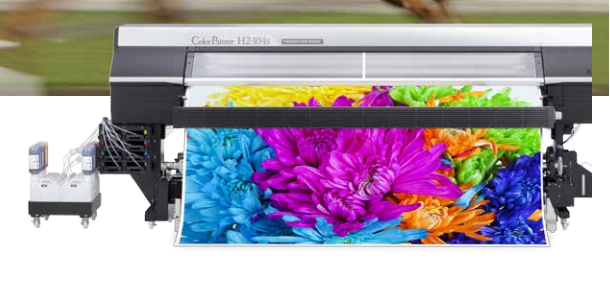

The ColorPainter H2P-104s/H2P-74s offers a high capacity 4 color ink system, and new value priced VX inks to reduce the TCO (Total Cost of Ownership) for high volume sign makers.

Dynamically processing each color into 3 drop sizes “on-the-fly” requires high-speed processing within the printer. DDP delivers maximum image quality while maintaining proper color densities even at the highest speed of 79.5 m2/h (856 sfph) *. OKI Data Infotech’ exclusive DDP technology produces superior smooth gradients and lush rich colors at all print speeds and every resolution.

Product Description

Specifications

Model IP-7900-26
(ColorPainter H2P-104s)
IP-7700-26
(ColorPainter H2P-74s)
Print Head High-frequency drop on demand piezo
Number of Nozzles 508 nozzles × 8
Resolution 360 dpi to 900 dpi
Maximum Media Width 2,642 mm (104″) 1,900 mm (74.8″)
Maximum Print Width 2,632 mm (103.6″) 1,890 mm (74.4″)
Media Weight Up to 120 kg (264 lbs.) Up to 50 kg (110 lbs.)
Maximum Media Diameter 350 mm (13.8″) 220 mm (8.7″)
Margin Size 5 mm on each edge (with rolled media, without edge guards)
Ink Type Low solvent: VX
Color 4 (C, M, Y, K) × 2
Maximum Ink Capacity 4 liters per reservoir (8 liters per color)
Media PVC, banner and other media designed for solvent printers.
Heater 3-way built in heaters (Front/Print/Rear); Max temp. 70 ºC
Take-up modes Loose/Inner, Loose/Outer, Tension/Inner, Tension/Outer
Interface USB 2.0
Power Voltage 200 to 240 VAC, ±10%
Power Consumption Printer: 1440 W or less, Heater: 2880 W or less
Operating Environment 15 – 30ºC (59 – 86ºF ), 30 to 70% RH (no condensation)
Storage Environment 5 – 35ºC (41 – 95ºF), 10 to 80% RH (no condensation)
External Dimensions
(W) x (D) x (H)
4126 × 1366 × 1513 mm
(162″ × 54″ × 60″)
3,383 × 1,275 × 1,511 mm
(133″ × 50″ × 60”)
Weight 600 kg (1,322 lbs.) or less 450 kg (992 lbs.) or less
Option Mesh Printing Kit, Foot Switch, Scroller, Exhaust Attachments, Scroller Set (Shaft & 2 Flanges), Scroller Flange (2pcs/set), Exhaust Attachments
Certificate CE, CSA (NRTL/C), RoHS, Vietnam RoHS
Tuân thủ hạn chế các chất nguy hại trong các thiết bị điện và điện tử.

OPTION

Common option
IP7-013 Exhaust Attachment
Option for ColorPainter H2-104s
IP7-011 Mesh Kit 104
IP7-014 Foot switch
IP7-015 Scroller
IP7-023 Tensioner 104
IP7-025 Offset loading kit 104
Option for ColorPainter H2P-74s
IP7-017 Mesh Kit 74
IP7-018 Scroller flange
IP7-019 Scroller set
IP7-022 Tensioner 74
IP7-024 Offset loading kit 74

Consumables

Consumables
IP7-331 VX (Yellow) 1 liter x 3
IP7-332 VX (Magenta) 1 liter x 3
IP7-333 VX (Cyan) 1 liter x 3
IP7-334 VX (Black) 1 liter x 3
