Product Description

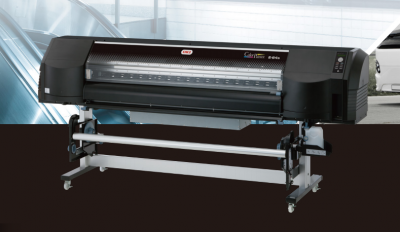

Model | IP-6620 (ColorPainter M-64s) |
---|---|
Print Head | High Frequency drop on demand piezo |
Number of Nozzles | 508 nozzles/head |
Maximum Resolution | 900 dpi |
Maximum Media Width | 1,626 mm (64″) |
Maximum Print Width | 1,616 mm (63.6″) |
Printing Speed | 3.5 to 66.5 smph (38 to 716 sfph) |
Media Weight | Up to 50 kg (110 lbs) |
Maximum Media Diameter | 220 mm (8.7″) |
Margin Size | 5 mm (1/5″) on each edge (with rolled media, without edge guards) |
Ink Type | Low-Odor and Eco Solvent: SX |
Color | 6 (C, M, Y, K, Lc, Lm) or 7 (C, M, Y, K, Lc, Lm, Gy) |
Maximum Ink Capacity | 1.5 liters per color |
Media | PVC, Banner and other media designed for solvent printers. |
Heater | 3-way built-in heaters (Pre, Print, After) |
Take-up Modes | Loose/Outer, Tension/Inner, Tension/Outer |
Interface | USB 2.0 |
Power Source | 200 to 240 VAC, 12A, 50Hz/60Hz |
Power Consumption | 2,880W or less |
Operating Environment | 15 – 30 ºC (59 – 86 ºF), 30 – 70 % RH (no condensation) |
Storage Environment | 5 – 35 ºC (41 – 95 ºF), 10 – 80 % RH (no condensation) |
External Dimensions | 3,095 (W) x 935 (D) x 1,247 (H) mm (122″ x 37″ x 49″) |
Weight | 321 kg ( 708 lbs) or less without media and inks |
