Product Description

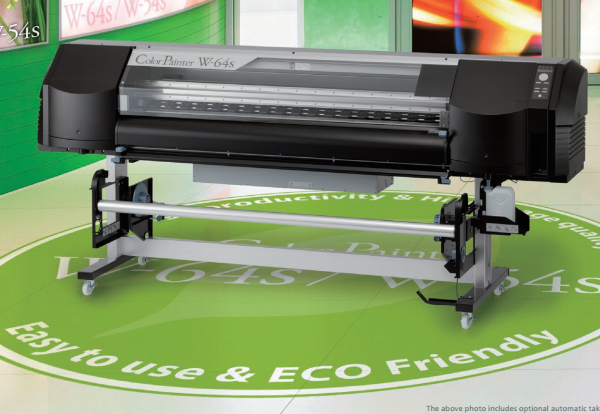

| Model | IP-5620 (ColorPainter W-64s) |
IP-5520 (ColorPainter W-54s) |
|
|---|---|---|---|
| Print Heads | Industrial drop-on-demand piezo-electric | ||
| Number of Print Heads | 4 (for 4-color configuration), 6 (for 6-color configuration) | ||
| Print Modes | 900×900 dpi, 720×720 dpi, 540×540 dpi, 540×360 dpi | ||
| Print Speeds | 26 – 191 sfph 2.4 – 17.8 m2ph |
22 – 182 sfph 2.1 – 16.8 m2ph |
|
| Number of Nozzles | 6 Colors: 254 nozzles x 6, 4 Colors: 254 nozzles x 4 | ||
| Maximum Media Width | 64” (1,626 mm) | 54” (1,372 mm) | |
| Maximum Print Width | 63.6” (1,616 mm) | 53.6” (1,362 mm) | |
| Media Weight | 53 lbs/ 24kg | ||
| Maximum Media Diameter | 7” (180 mm) | ||
| Maximum Media Length | 164’ (50 m) | ||
| Paper Feed Method | Roll / Cut Media | ||
| Head Height | 2 levels: .08”(2.1 mm) or .1” (2.6 mm) | ||
| Margin Size | 1/5” (5 mm) when using roll without edge guard | ||
| Ink | Types | GX Low Solvent High-Viscosity Ink, IX HAPs-Free Low Solvent High-Viscosity Ink, Neon Low Solvent Fluorescent Ink | |
| Colors | GX, IX: 6 colors (C, M, Y, K, Lc, Lm) Neon: 2 colors (Np, Ny) *Ny and Np can be used with GX Ink only. |
||
| Ink Capacity | 500 milliliters per color | ||
| Media | Vinyl, banner, backlit films, textiles and other media designed for solvent printers |
||
| Built-in Heater | 3-way independently controlled heater (front / print / rear) 59°F (15°C) – 133°F (55°C) |
||
| Modes on Optional Take-up System |
Tension, Loose, Inside, Outside | ||
| Interface | USB 2.0 | ||
| Power Consumption | 1350 W (in operation) | ||
| Power Voltage | 110 VAC ± 10% | ||
| Operating Environment | 15-30°C (59-86°F), 30-70% RH (no condensation) | ||
| Storage Environment | 5-35°C (41-95°F), 10-80% RH (no condensation) | ||
| External Dimensions (W x D x H) |
112” x 33” x 50” (2,830 x 830 x 1,255 mm) |
102” x 33” x 50” (2,576 x 830 x 1,255 mm) |
|
| Weight | 452 lbs (205 kg) | 408 lbs (185 kg) | |
| Accessories | Waste Ink Bottle, USB 2.0 cable, Wiper Sponge, S/W RIP, CD w/User Manual & CP_Manager S/W |
||
| Certificate | CE, CSA (NRTL/C), RoHS, Vietnam RoHS Tuân thủ hạn chế các chất nguy hại trong các thiết bị điện và điện tử. |
||
| Specifications are subject to change without notice. Please contact your local authorized product reseller. | |||
