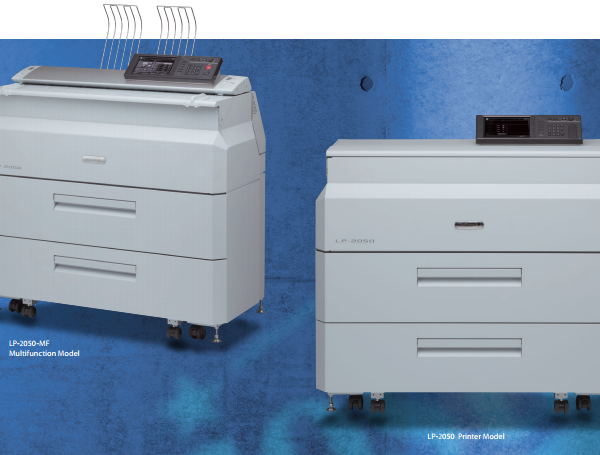

LP-2050 Series

LP-2050 Series

LP-2050 Series

Teriostar family adds a new member to meet customer demand for superior work efficiency and easy operation.
Teriostar LP-2050 offers unparalleled productivity and ease-of-use.

Space-saving compact design

With a compact design of 1200 mm/47” (W) and 640 mm/25” (D), the Teriostar family saves space and enables easy printer positioning even in small workspaces.

Easy-to-use large 8.5” color touchscreen

Color GUI (Graphical User Interface) offers improved visibility and visual guidance to achieve intuitive and simple operation.

Product Description

Specification

Printer
Specification LP-2050-MF
Multi-function model
LP-2050
Printer model
Imaging method Electrophotographic technology
(LED Exposure/single component type dry development /OPC drum)
Output resolution 600 dpi
Continuous output speed 9.0 A1-size prints per minute/
10 D-size prints per minute
Media width Maximum 914 mm (36 inches)/
Minimum 279 mm (11 inches)
Print length Maximum 15 meters (49 feet)*1
Guaranteed print area Full area excluding 5 mm each from frond end,
rear end and right/left side
Paper feed 4-rolls (36”/A0/A1/A2/A3)
Paper type Plain paper, tracing paper (75g/m2), Matt film (90um)
Supported data format HP-GL, HP-GL/2, HP RTL, TIFF

* 1: Print length depends on types of media or operating environment.



Scanner
Specification LP-2050-MF
Multi-function model
LP-2050
Printer model
Scanning resolution 600 dpi
Scanning speed Black & white/color: Maximum 240 mm (9 inches) per second*1
Scanning width Maximum 914 mm (36 inches)/Minimum 182 mm (7 inches)
Scanning length Maximum 15 meters
(49 feet)*2
Supported data format Black & white: TIFF, PDF
Color: TIFF, PDF, JPEG

* 1: Scanning speed varies by resolution.
* 2: Maximum scanning length may be limited by paper size, resolution or file format.

Others
Specification LP-2050-MF
Multi-function model
LP-2050
Printer model
Memory 2 GB
HDD 320 GB
Interface Ethernet (10Base-T/100Base-Tx/1000Base-T)
Network protocol TCP/IP( ftp, lpr, socket)
Logical port 20 ports
Web function Available
Dimensions 1200 (W) x 640 (D) x 1200 (H) mm/47 x 25 x 47 inches*1 1200 (W) x 640 (D) x 1150 (H) mm/47 x 25 x 45 inches*1
Weight 250 kg or less*2 240 kg or less*2
Power voltage AC120V±10% (USA version) ,
AC230V±10% (European version)
Power consumption Operation: less than 1.95 KW,
Energy saving mode: less than 16.5 W
Warm-up time 3 minutes or less
Certificate CE, CSA (NRTL/C), RoHS, Vietnam RoHS
Tuân thủ hạn chế các chất nguy hại trong các thiết bị điện và điện tử.

*1: Stacker, tray and paper outlet guide are excluded.
*2: Toner and paper are excluded
