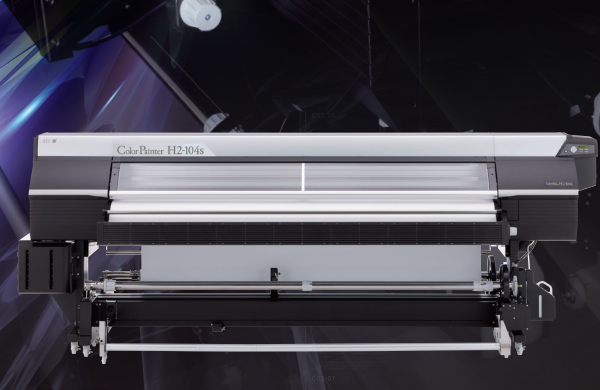

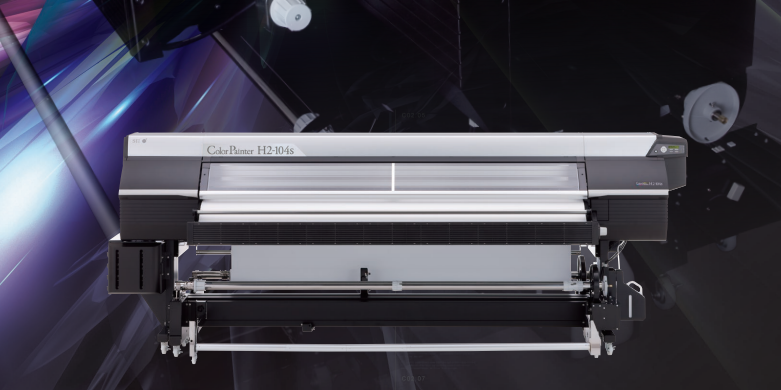

H2-104s/H2-74s

H2-104s H2-74s

H2-104s/H2-74s

The ColorPainter H2-104s/H2-74s high-speed series coupled with improved reliability evolved to the top of the line of wide format printers.

Integrating the Smart Pass Technology 3 with Dynamic Dot Printing Technology, the ColorPainter H2-104s/H2-74s prints revolutionary higher quality image while maintaining the high print speed of its predecessor. The fastest print mode achieves 50 m2/h (538 sfph)(8-color mode). The printer is best suited for large format banners and high volume printing in short turnaround times.

Product Description

Specifications

Model IP-7900-20
(ColorPainter H2-104s)
IP-7700-20
(ColorPainter H2-74s)
Print Head High-frequency drop on demand piezo
Number of Nozzles 508 nozzles × 8
Resolution 360 dpi to 900 dpi
Maximum Media Width 2,642 mm (104″) 1,900 mm (74.8″)
Maximum Print Width 2,632 mm (103.6″) 1,890 mm (74.4″)
Media Weight Up to 120 kg (264 lbs.) Up to 50 kg (110 lbs.)
Maximum Media Diameter 350 mm (13.8″) 220 mm (8.7″)
Margin Size 5 mm on each edge (with rolled media, without edge guards)
Ink Type Mild Solvent : EGO-GX
Color 8 (C, M, Y, K, Lc, Lm, Gray & Light Gray) or 4 (C, M, Y, K) × 2
Ink Capacity 1,500 ml per color
Media PVC, banner and other media designed for solvent printers.
Heater 3-way built in heaters (Front/Print/Rear); Max temp. 70 ºC
Take-up modes Loose/Inner, Loose/Outer, Tension/Inner, Tension/Outer
Interface USB 2.0
Power Voltage 200 to 240 VAC, ±10%
Power Consumption Printer: 1440 W or less, Heater: 2880 W or less
Operating Environment 15 – 30ºC (59 – 86ºF ), 30 to 70% RH (no condensation)
Storage Environment 5 – 35ºC (41 – 95ºF), 10 to 80% RH (no condensation)
External Dimensions
(W) x (D) x (H)
4126 × 1366 × 1513 mm
(162″ × 54″ × 60″)
3,383 × 1,275 × 1,511 mm
(133″ × 50″ × 60”)
Weight 600 kg (1,322 lbs.) or less 450 kg (992 lbs.) or less
Option Mesh Printing Kit, Foot Switch, Scroller, Exhaust Attachments, Scroller Set (Shaft & 2 Flanges), Scroller Flange (2pcs/set), Exhaust Attachments
Certificate CE, CSA (NRTL/C), RoHS, Vietnam RoHS
Tuân thủ hạn chế các chất nguy hại trong các thiết bị điện và điện tử.

OPTION

Common option
IP7-013 Exhaust Attachment
Option for ColorPainter H2-104s
IP7-011 Mesh Kit 104
IP7-014 Foot switch
IP7-015 Scroller
IP7-023 Tensioner 104
IP7-025 Offset loading kit 104
IP7-109 Filter kit 104
Option for ColorPainter H2-74s
IP7-017 Mesh Kit 74
IP7-018 Scroller flange
IP7-019 Scroller set
IP7-022 Tensioner 74
IP7-024 Offset loading kit 74
IP7-029 Filter set 74

Consumables

Consumables
IP7-101 EGO-GX Y (Yellow)
IP7-102 EGO-GX M (Magenta)
IP7-103 EGO-GX C (Cyan)
IP7-104 EGO-GX K (Black)
IP7-105 EGO-GX Lc (Light Cyan)
IP7-106 EGO-GX Lm (Light Magenta)
IP7-107 EGO-GX Gy (Gray)
IP7-108 EGO-GX Lgy (Light Gray)
