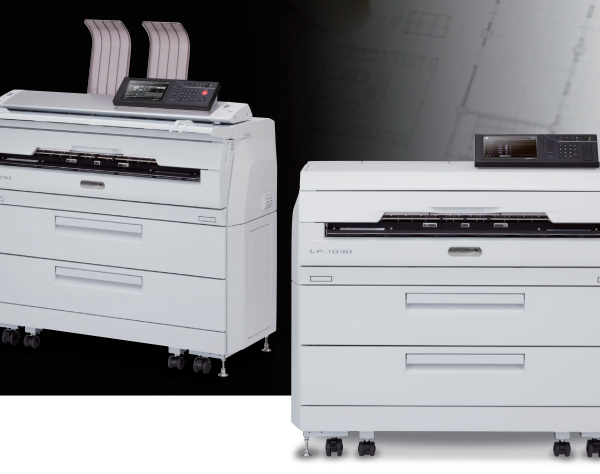

LP-1030 Series

LP-1030 Series

LP-1030 Series

Teriostar family adds a new member to meet customer demand for superior work efficiency and easy operation.
Teriostar LP-1030 offers unparalleled productivity and ease-of-use.

High speed printing and scanning

LP-1030 boasts a new print engine and scanner that enables print speed of 7.5 D-size prints per minute, 7.0 A1-size prints per minute, and scanning speed of up to 240 mm/9.4” per second for both color and black & white.



Space-saving compact design

With a compact design of 1200 mm/47” (W) and 605 mm/24” (D), the Teriostar family saves space and enables easy printer positioning even in small workspaces.

Easy-to-use large 8.5” color touchscreen

Color GUI (Graphical User Interface) offers improved visibility and visual guidance to achieve intuitive and simple operation.

Product Description

Specification

Printer
Specification LP-1030-MF
Multi-Function Model
LP-1030 Printer Model
Imaging Method Electrophotographic Technology
(LED exposure / single component type dry development / OPC drum)
Output Resolution 600 dpi
Continuous Output Speed 7.5 D-size prints per minute /
7.0 A1-size prints per minute
Print Width Maximun 914mm (36 inches),
Minimum 279mm (11 inches)
Print Length Maximum 10 meters (32 feet)*1
Print Margins 5mm (0.2 inch) from each side
Paper Feed 2 rolls (up to 36 inches wide each)
Paper Types Plain paper, tracing paper (75g/m2), Matt film (90um)
Data Formats HP-GL, HP-GL/2, HP RTL, TIFF, CALS

* 1: Print length depends on types of media or operating environment.



Scanner
Specification LP-1030-MF
Multi-Function Model
LP-1030 Printer Model
Scanning Resolution 600 dpi
Scanning Speed 240 mm (9 inches) per second*1
Black & White or Color
Scanning Width Maximum 914 mm
(36 inches)
Minimum 182 mm
(7 inches)
Scanning Length Maximum 10 meters
(32 feet)*2
Data Formats Black & White: TIFF, PDF
Color: TIFF, PDF, JPEG

* 1: Scanning speed varies by resolution.
* 2: Maximum scanning length may be limited by paper size, resolution or file format.

Others
Specification LP-1030-MF
Multi-Function Model
LP-1030 Printer Model
Memory 2 GB
HDD 320 GB
Interface Ethernet (10Base-T / 100Base-Tx / 1000Base-T)
Network Protocol TCP/IP( ftp, lpr, socket)
Logical Port 10 ports
Web Function Available
Dimensions 1200 (W) x 605 (D) x
1145 (H) mm*1
47 x 24 x 45 inches
1200 (W) x 520 (D) x
1100 (H) mm*1
47 x 20 x 43 inches
Weight 205 kg or less*2 185 kg or less*2
Power Voltage AC120V±10% (USA version) ,
AC230V±10% (European version)
Power Consumption Operation: less than 1.45 KW,
Energy saving mode: less than 16.5 W
Warm-Up Time 4 minutes or less
Certificate CE, CSA (NRTL/C), RoHS, Vietnam RoHS
Tuan th? h?n ch? cac ch?t nguy h?i trong cac thi?t b? ?i?n va ?i?n t?.

*1: Catch basket, tray and paper tray excluded.
*2: Toner and paper excluded.
