Bizhub PRO 951

True 1,200 dpi high-resolution outputs
The bizhub PRO 951 achieves true 1,200 dpi resolution high printing quality thanks to the adoption of the LED Print Head and belt transfer system. Fine lines for charts and graphs and multi-gradation images can be clearly reproduced in high definition to produce convincingly easy-to-read documents.

LED Print Head (LPH)
The bizhub PRO 951 adopts an LED Print Head which employs an LED unit which achieves true 1,200 dpi high resolution for significantly enhanced reproductions of even fine text and screen gradations.

Belt transfer system
The belt transfer system improves the quality of the transferred images and paper feeding. The paper is adhered onto the transfer belt to eliminate any gaps, ensuring that the toner is consistently fixed onto the belt without unevenness. Incidences of images being cut at the paper’s edge and transfer shifts caused by nip resistance are also minimised.

Screen settings
Pre-setting screens (2 types of resolution in 3 patterns each) and dot screens are provided to maintain high resolution. High quality print images are provided by using the optimal screen to match the output.

Tone curve utility
Standard equipped tone curve utility corrects brightness, contrast, and more for print jobs quickly. It significantly improves both work efficiency and image quality.

CIE colour space
When outputting a colour original, the inputted image is temporarily converted to a CIE colour space and then optimally processed by converting it in the main unit’s colour space. This method faithfully reproduces shadowed areas of images over the conventional simple conversion formula to provide richer gradation expressions.
* Output speed will be 10-20% slower.

Front and back printing position adjustments
Highly accurate front- and back-side registrations are possible with image shift and independent magnification adjustment. Even the slightest shifts can be minutely adjusted to achieve higher quality duplex printing, trimming and bookbinding.

Simitri HD toner
Simitri HD toner’s optimised toner particle structure and smoother fixing improve transfer performance for clearer reproductions of small text and thin lines, as well as providing richer halftones and gradations for photos. Its low temperature fixing reduces paper curls and waviness to eliminate paper shifts during stapling and folding.

High-speed 95 ppm outputs
The bizhub PRO 951 achieves a 95 ppm* copying and printing speed for both simplex and duplex outputs. And with 55 ppm* for A3 outputs, booklets and imposition data can be created quickly. Enhanced printer controller performance accelerates data processing to increase productivity for high volume multi-page jobs.
* Using 40~162g/m2 paper (limitations may apply according to paper type and environment)

High-productivity tandem system
Combine two bizhub PRO 951’s to expand into a tandem system that can process one job with two systems. This improves productivity by increasing the number of outputs to 190 ppm* (A4 horizontal). Even when one device stops due to reasons such as toner depletion, recovery outputs can be made with the other system to keep the job going consistently. The tandem system offers sufficient capacity for even high volume jobs.
* Using 40~162g/m2 paper (limitations may apply according to paper type and environment)

Full A3 outputs (19 inches) including crop marks
Achieve full A3 outputs including crop marks with the optional Paper Feeder Unit PF-706 and Large Capacity Unit LU-410. The maximum paper size in the sub scanning direction can be extended to 19 inches (483 mm). Even 324 mm x 483 mm irregular size paper can be used providing a maximum printable area of 314 mm x 483 mm*.
* With optional Large Capacity Unit LU-410 installed.

Large Capacity Units LU-409/LU-410 Paper Feed Unit PF-706
Minimise the downtime required for reloading paper. Large Capacity Units LU-409 and LU-410 hold up to 4,000 A4 sheets* and 4,000 A3 sheets* respectively, while the Paper Feeder Unit PF-706’s 3-layer cassette holds up to 6,000 A3 sheets*. Together with the main unit’s 3,000-sheet* capacity the bizhub PRO 951 holds up to 9,000 sheets so it can handle large print runs with ease.
* 80 g/m2

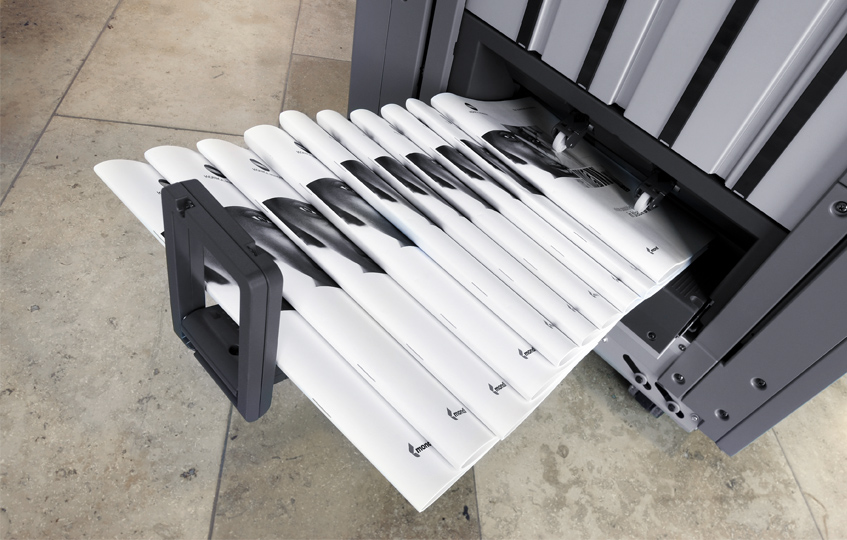

All-in-one finisher FS-532
The FS-532 is an exceptional all-in-one finisher designed for both professional and entry-level operators, providing the flexibility to meet the varying finishing needs of customers. In addition to standard stapling, it can be equipped with the Post Inserter PI-502*, Punch Kit PK-522, and Saddle Stitcher with three-fold function SD-510.
* Optional Mount Kit MK-732 required with PI-502.

Z-Folding Unit with hole punching function (ZU-608)
* Optional
This finisher employs both Z-folding and hole-punching functions. Diagrams and flow charts printed in A3 (or B4) size can be Z-folded and inserted into A4 (or B5) size booklets. Detailed diagrams can be inserted without having to reduce their sizes.

Highly rigid frame and highly durable parts
The bizhub PRO 951 is built to withstand heavy and continuous use. The highly rigid frame with box-shaped dual-structured chassis prevents the main unit from vibrating and twisting for longer lasting performance.

Main unit authentication and IC card authentication
Reinforce information security with the main unit authentication which supports external servers such as Active Directory and centralised management of user information; and touch-type authentication using non-contact IC cards which only allows bizhub access with employee IDs.

Use of recycled materials
Konica Minolta prioritises the use of materials and parts with low environmental impact for the bizhubs. Environmentally considerate recycled PC/PET and plant-based bioplastic are employed throughout the bizhub PRO 951.

Centralised management and TCO reduction
Numerous technologies to reduce waste, energy and unnecessary costs are employed throughout the bizhub PRO 951 without sacrificing quality and productivity. And centrally manage all of your output devices with PageScope Enterprise Suite for smoother operation.

download

Categories: ,

Product Description

Specifications

General Specifications
Type Console Full Colour Printer/Copier/Scanner
Resolution Scan 600 × 600 dpi
Print 1,200 × 1,200 dpi
Gradation 256
Original Type Sheets, Books, Objects
Max. Original Size A3 (11″ × 17″)
Memory Capacity DIMM 768 MB
HDD 250 GB
Output Size
(S: Short edge feed )
SRA3, A3 to B5, A5S, Tab paper,
Custom 95 × 133 mm (Using small size guides), to 324 × 463 mm
Image Loss Max. 3 mm or less for top edge, Max. 2.0 mm or less for bottom edge,
Max. 2.0 mm or less for right/left edges
Warm-Up Time 390 sec. or less
First Copy Out Time 3.4 sec. or less
Copy / Print Speed (A4) 95 ppm
Copy Magnification Fixed Same Magnification 1:1±0.5% or less
Scaling Up 1:1.154/1.224/1.414/2.000
Scaling Down 1:0.866/0.816/0.707/0.500
Preset 3 types
Zoom 25 to 400% (in 0.1% increments)
Paper Capacity(80g/m2) Standard: 1,500 sheets × 2
Paper Weight Standard 40 to 300 g/m2 (Limitations to paper types apply)
Option 40 to 350 g/m2 (Only available for middle tray of PF-706)
Multiple Copy 1 to 9,999 sheets
Auto Duplex
(S: Short edge feed )
Non-Stack
SRA3, A3 to B5, A5S
Power Requirements 220 to 240 V/15 A
Max. Power Consumption
(Main unit + PF-706 + FS-532)
3.6 kW or less
Dimensions [W] × [D] × [H] 990 × 910 × 1,234 mm (39″ × 35-3/4″ × 48-1/2″) (Main unit + ADF) 1,211 × 910 × 1,454 mm (47-3/4″ × 35-3/4″ × 57-1/4″) (including operation panel)
Weight 364 kg (802-1/2 lb) (Main unit)
Space Requirements [W] × [D] 2,365 × 980 mm (93-1/4″ × 38-1/2″) <Main unit + FS + PFU>
Printer Specifications (Standard)
Type Embedded
CPU Pentium G6950 2.8 GHz
Memory 2 GB
HDD 250 GB 3.5 inch SATA
Print Speed 95 ppm
Print Resolution 1,200 × 1,200dpi, 600 × 600dpi
PDL PCL5e/6, PostScript3 (3019), PDF Ver1.7, TIFF Ver. 6 Emulation,
PPML (Ver2.2)
Protocol TCP/IP, IPX/SPX (NDS support), SMB (NetBEUI), IPP, EtherTalk
Support OS PCL Windows XP Home Edition/Professional,
XP Home Edition/Professional 64bit,
Server 2003 Standard/Enterprise,
Server 2003 Standard/ Enterprise 64bit, Vista/Vista 64bit,
Server 2008/Server 2008 64bit, 7/7 64bit
PS/PS-Plug-in Windows XP Home Edition/Professional,
XP Home Edition/Professional 64bit,
Server 2003 Standard/Enterprise,
Server 2003 Standard/Enterprise 64bit, Vista/Vista 64bit,
Server 2008/Server 2008 64bit, 7/7 64bit
Mac OS X 10.3 (PS PPD only), 10.4 (PPC/Intel), 10.5 (PPC/Intel), 10.6 (Intel)
Fonts PCL 80 fonts
PS 136 fonts
Interface 10Base-T/100Base-TX/1000Base-T, USB2.0 (Hi-Speed)
Scanning Specifications (Standard)
Type Monochrome
Scanning Speed (A4) 96 opm
Scanning Size Conforms to main unit specifications
Scanning Resolution 1200×1200 dpi equiv., 600×600 dpi, 400×400 dpi,
300×300 dpi, 200×200 dpi
Protocol TCP/IP (FTP, SMB, SMTP, WSD)
Support OS Windows XP/XP 64bit/Vista/Vista 64bit/7/7 64bit
Interface Ethernet 10Base-T/100Base-TX/1000Base-T
Output Format PDF, TIFF, Linearised PDF, XPS
Reverse Automatic Document Feeder (Standard)
Type Reverse Automatic Document Feeder
Original Size Max. A3 (Custom 297×431.8mm)
Paper Weight 50 to 130 g/m2 (50 to 200 g/m2 for single fed simplex documents)
Paper Capacity (80 g/m2) Max. 100 sheets
Dimensions [W] × [D] × [H] 650 × 570 × 170 mm (25-1/2″ × 22-1/2″ × 6-3/4″)
Weight Approx. 22 kg (48-1/2 lb)
