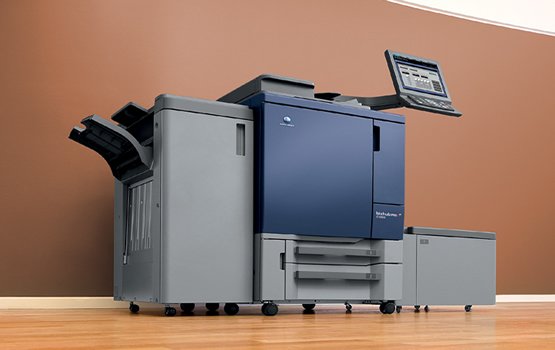

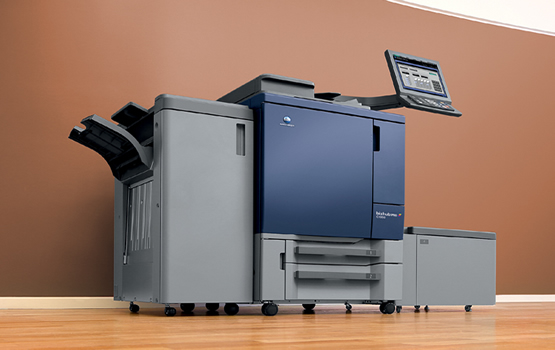

Product Description
Specifications
| Type | Console type | |
|---|---|---|
| Copy Method | 4-coupled drum tandem laser electrostatic method | |
| Resolution | Scan | 600 dpi × 600 dpi |
| 1,200 dpi (Equivalent to 3,600 dpi) × 1,200 dpi | ||
| Gradation | 8-bit / 256 Gradation | |
| CPU | Pentium G850 2.9 GHz | |
| System Memory Capacity | 6 GB | |
| HDD | 1.5 TB | |
| Original Type | Sheet, Book, Solid object | |
| Max. Original Size | A3 or 11×17 | |
| Max. Printing Area | 323 mm × 480 mm | |
| Output Size (S: Short Edge Feed  ) |
Standard: SRA3, A3, B4, A4, B5, 13 × 19, 11 × 17, 8 1/2 × 14, 8 1/2 × 11, 5 1/2 × 8 1/2S Tab paper (A4, 8 1/2 × 11) Max. 330 mm × 487 mm, Min. 140 mm × 182 mm Multi-bypass (Option) : SRA3, A3, B4, A4, B5, 13 × 19, 11 × 17, 8 1/2 × 14, 8 1/2 × 11, 5 1/2 × 8 1/2S Tab paper (A4, 8 1/2 × 11) Max. 330 mm × 487 mm, Min. 100 mm × 148 mm |
|
| Image Loss | Max. 4 mm or less for top edge, Max. 4.5 mm or less for bottom edge, Max. 3.0 mm or less for right/left edges |
|
| Warm-Up Time | 390 seconds or less | |
| First Copy Out Time | Colour | 7.6 seconds or less (A4, 8 1/2 × 11) |
| Black and White | 6.3 seconds or less (A4, 8 1/2 × 11) | |
| Continuous Copy Speed | Colour | 61 sheets/min. (A4) , 33 sheets/min. (A3) |
| Black and White | 61 sheets/min. (A4) | |
| Copy Magnification | Fixed Magnification | Inch: × 1.000, × 2.000, × 1.545, × 1.294, × 1.214, × 0.785, × 0.772, × 0.647, × 0.500 Metric: × 1.000, × 2.000, × 1.414, × 1.189, × 0.840, × 0.707, × 0.500 |
| Zoom Magnification | × 0.250 to × 4.000 (Each 0.001 step) | |

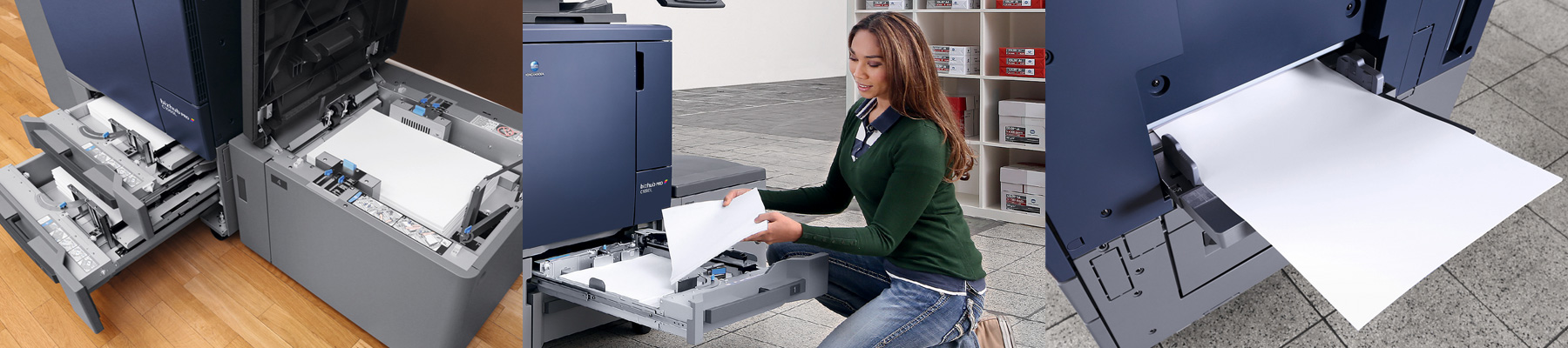

| Tray Capacity | Standard | Tray 1 (500 sheets, 80 gsm) Tray 2 (1,000 sheets, 80 gsm) |
| Option | MB-506 (Multi-bypass, 250 sheets, 80 gsm)*1 *2 LU-202 (2,500 sheets × 80 gsm)*1 |
|
| Paper Type | Plain, Fine, Recycled paper, Color, Coated-GL, Coated-ML, Coated-GO,Tab paper | |
| Paper Weight | Standard | 62 gsm to 256 gsm *3 (Plain, Fine, Colour Specific) 81 gsm to 256 gsm *3 (Coated) |
| Option(MB-506) | 62 gsm to 300 gsm | |
| Continuous Copy Count | Up to 9,999 sheets | |
| Paper Capacity | 150 sheets (80 gsm) *4 | |
| Power Source | Inch: AC208 to 240V 21A 60 Hz Metric: AC220 to 240V 20A, 50 Hz / 60 Hz |
|
| Power Consumption | Inch: 4,900W or less (Main body only) Metric: 4,700W or less (Main body only) |
|
| Dimensions [W] × [D] × [H] | 760 mm*5 × 903 mm*6 × 1073 mm*7 / 29.92″*5 × 35.55″*6 × 42.24″*7 (Main body + Original Cover) |
|
| Weight | Approximately 291 kg / 641 lb (Main body only) | |
- *1
- MB-506, PF-602m, PF-707 and LU-202 are the options.
- *2
- PF-602m and PF-707 are not available when MB-506 is installed.
- *3
- For paper size A4 or smaller than 8 1/2 × 11, it is up to 216 gsm.
- *4
- The OT-502 is attached as an option.
- *5
- Excluding the control panel, output tray, work table.
- *6
- Including the rear duct.
- *7
- Height to the top of the original cover excluding the control panel.
| Type | AIO to the engine (Option) |
|---|---|
| CPU | Conforms with main unit specification |
| Memory | Max. 10 GB Details: 2 GB + 4 GB (Standard of the main body) + 4 GB (IC-602) |
| HDD | Max. 1.5 TB Details: 500 GB × 3 (Standard of the main body) |
| Page-description Language | Adobe PostScript3 (PS3019), PDF direct print (PDF version 1.7), TIFF direct print (TIFF version 6 compliance), PPML (version 2.2), PCL-5c compatible, PCL XL (PCL6 version 3) compatible |
| Printing Method | Pserver (IPX/SPX), LPD/LPR (TCP/IP), IPP (TCP/IP), AppleTalk (EtherTalk),Bonjour (TCP/IP), Web service printing (TCP/IP), NPrinter / RPrinter (IPX/SPX), Raw Port (TCP/IP), SMB |
| Applicable OS | PS Plug-in Windows XP / Server 2003 / Vista / Server 2008 / 7 / 8 / Server 2012*1 MacOSX 10.5 / 10.6 / 10.7 / 10.8 (PPC/Intel) PS PPD*2 Windows XP / Server 2003 / Vista / Server 2008 / 7 / 8 / Server 2012*1 Linux CUPS |
| Interface | Ethernet (1000BASE-T / 100Base-TX / 10Base-T) with IPv6, USB |
| Scanner Resolution | 200 / 300 / 400 / 600 dpi |
| Data Format | PDF, TIFF, JPEG, XPS |
| Driver | HDD Twain Driver,Real Time Mode Twain Driver |
- *1
- Includes 64-bit.
- *2
- WHQL is not obtained for the PS PPD driver
| Type | Embedded |
|---|---|
| CPU | Conforms with main unit specification |
| Memory | 2 GB |
| HDD | 500GB SATA |
| Page-description Language | Adobe PostScript3 (PS3019), (PDF 1.7), PCL 5/6 emulation |
| Printing Method | TCP/IP, SNMP, SMB, FTP, LPR, IPP, Bonjour |
| Applicable OS | Windows XP / Vista / 7 / 8 / Server 2003 / Server 2008*1 MacOSX 10.5 / 10.6 / 10.7 / 10.8 |
| Scanner Resolution | 200 / 300 / 400 / 600 dpi |
| Data Format | PDF, TIFF, JPEG |
| Driver | Twain Plug-in |
* Includes 64-bit.
