H3-104s

H3-104s

H3-104s

Low OdorHigh Performance with Low Odor

The newly-developed eco solvent SX inks offer a wide color gamut, high vividness, high density, excellent outdoor durability and low running costs in addition to the low level of odor. Overall performance of SX inks meets the customers demand for higher productivity and better workplace environment.

Product Description

Specifications

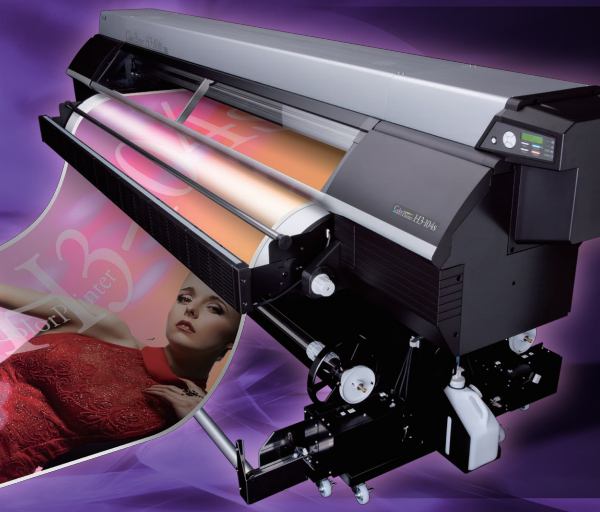

ColorPainter H3-104s (IP-7900-22/23)
Print Head High Frequency drop on demand piezo
Number of Nozzles 508 nozzles/head
Maximum Resolution 900 dpi
Maximum Media Width 2,642 mm (104”)
Maximum Print Width 2,632 mm (103.6”)
Printing Speed 3.8 smph (41 sfph) to 56.6 smph (609 sfph)
Media Weight Up to 120 kg (264 lbs)
Maximum Media Diameter 350 mm (13.8”)
Margin Size 5 mm (1/5”) on each edge (with rolled media, without edge guards)
Maximum Print Length PVC 100 m (328’), other media 50 m (164’) (Print data size depends on RIP)
Head height Automatic adjustment
Ink Type Low-Odor and Eco Solvent: SX
Color 8 (C, M, Y, K, Lc, Lm, Gy, Lgy)
Maximum Ink Capacity 1.5 liters per color
Media PVC, Banner and other media designed for solvent inks.
Heater 3-way built-in heaters (Pre, Print, After) Maximum 70 °C
Take-up Modes Loose/Inner, Loose/Outer, Tension/Inner, Tension/Outer
Interface USB 2.0
Power Source 200 to 240 VAC, ±20%
Power Consumption (Printer) 1,440 W or less
Power Consumption (Heater) 2,880 W or less
Operating Environment 15 – 30 °C (59 – 86 °F), 30 – 70 % RH (no condensation)
Storage Environment 5 – 35 °C (41 – 95 °F), 10 – 80 % RH (no condensation)
External Dimensions 4126 (W) x 1366 (D) x 1513(H) mm(162” x 54” x 60”)
Weight 600 kg (1,322 lbs) or less without media and inks
Option
IP7-013 Exhaust Attachment
IP7-011 Mesh Kit 104
IP7-014 Foot switch
IP7-015 Scroller
IP7-023 Tensioner 104
IP7-025 Offset loading kit 104
Consumables
IP6-221 SX Ink Yellow 1.5-liter
IP6-222 SX Ink Magenta 1.5-liter
IP6-223 SX Ink Cyan 1.5-liter
IP6-224 SX Ink Black 1.5-liter
IP6-225 SX Ink Light Cyan 1.5-liter
IP6-226 SX Ink Light Magenta 1.5-liter
IP6-227 SX Ink Gray 1.5-liter
IP6-228 SX Ink Light Gray 1.5-liter
