Bizhub C554e/C454e/C364e/C284e/C224e

02
01030405

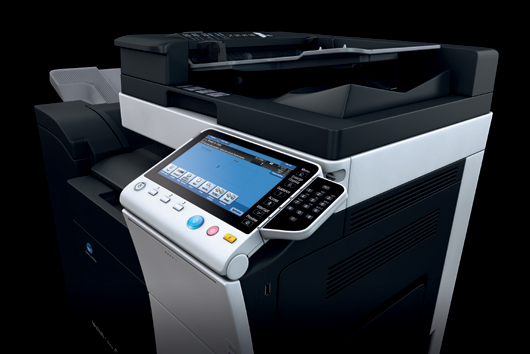

Bizhub C554e/C454e/C364e/C284e/C224e

Connect with mobiles and Cloud
Discover a new and freer work style with the bizhub C554e series. PageScope Mobile allows printing and scanning from mobile devices such as smartphones and tablets, as well as from the PCs, and maximises productivity and efficiency without additional operating costs by accessing Cloud services such as Google DriveTM and DropboxTM for an office-like work environment even from outside the company. Cloud/mobile/bizhub connectivity further enhances information sharing and use for greater business efficiency.

Ready-to-use operability for anyone
The bizhub C554e series adopts the easy and intuitive INFO-Palette design smart user interface, providing the same user experience in any business situation through seamless operation even from PCs, tablets and smartphones.

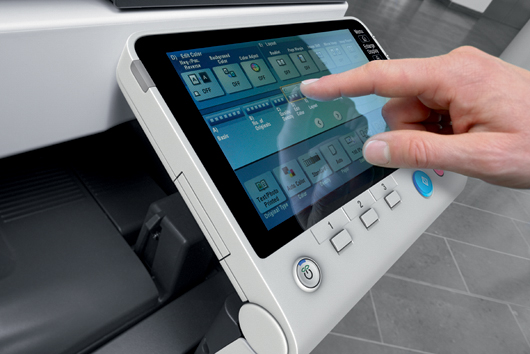

Easy smartphone-like operation
The bizhub C554e series implements the new multi-touch user interface which realises the same intuitive operation as mobile devices. Smartphone-like tap, flick and pinch make operations easier and more comfortable.

Convert hardcopies into MS Office files
Scan printed documents to create reusable Microsoft Office*1 files (PowerPoint, Excel*2, Word*2). And choose from five types of PDF files according to purpose, including Compact PDF, Encrypted PDF and Searchable PDF.
Convertible PDF files
Searchable PDF (for digitising text via OCR of text)*2
Compact PDF (for creating highly compressed PDFs)
Encrypted PDF (for adding digital IDs)
PDF/A (for long-term archiving)
Linearised PDF (for optimised web display)
Convertible Office files
OOXML files*1 (extensions: .docx*2, .xlsx*2, .pptx)
*1 Microsoft Office 2007 or later format *2 Optional

Beautiful high-quality colour outputs
Print thin lines and small text more clearly in real 1,200 dpi full-colour high resolution to create more convincing documents.

Optimal device placement for eco-conscious performance
Konica Minolta’s consulting service, Optimised Print Services (OPS), promotes greater business efficiency through optimal device placement and reduced TCO. Optimally placing devices with better environmental performance also reduces power costs.

Optimal security regardless of scale and environment

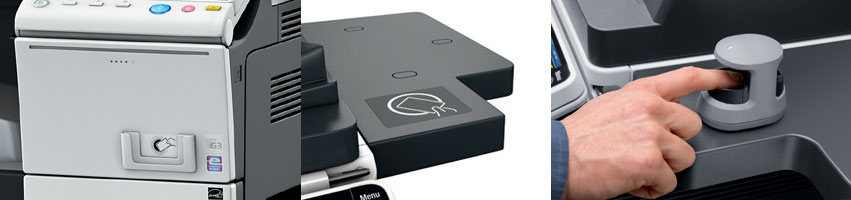

Build the optimal device security system according to use and scale with a variety of authentication systems including server-free MFP authentication, connecting with the already operating authentication server, IC card authentication using employee IDs and the sure-safe biometric authentication. The bizhub C554e series achieves an unparalleled level of security by complying with IEEE 2600.1*3 international standard for MFP and printer information security.

Low power consumption even during use
The bizhub C554 series easily clears the new Energy Starstandard TEC values (with just 3.5 kWh for the C554e).The thoroughly energy-saving design also reduces TCO.

A mere 1-watt power consumption in Sleep mode
The bizhub C554e series achieves even further energy savings in Sleep mode by reducing power consumption from the C554 series’ 3 watts to just 1 watt.

More environmentally considerate materials
Recycled materials are effectively employed for the outer surfaces such as recycled PC/PET developed by Konica Minolta using advanced chemical processing technology, recycled PC/ABS and bioplastics to help reduce environmental impact.

download

Product Description

Specifications

General Specifications
bizhub C554e bizhub C454e bizhub C364e bizhub C284e bizhub C224e
Type Desktop Full-colour Printer / Copier / Scanner
Colour Support Full-Colour
Copy Resolution Scan Main: 600dpi × Sub: 600dpi
Print 1,800 dpi (equivalent) × 600 dpi
Gradation 256
Memory Capacity (Std./Max.) 2 GB/4 GB
HDD 250 GB
Original Type Sheets, Books, Objects
Max. Original Size A3 (11″ × 17″)
Output Size SRA3 to A5, B6S*1, A6S*1 Thick paper, Foolscap*2 (8-1/2″ × 13-1/2″, 200 mm × 330 mm, 8-1/8″ × 13-1/4″, 8-1/2″ × 13″, 8-1/4″ × 13″, 8″ × 13″), 8K, 16K, Long Length Paper (210 × 457.3 mm to 297 × 1,200 mm)
Image Loss Max. 4.2 mm or less for top edge (5 mm for thin paper),
Max. 3.0 mm or less for bottom edge,
Max. 3.0 mm or less for right/left edges
* A loss of 4.2 mm each during printing.
Warm-Up Time*3 (23°C, std. voltage)
*The time required to start printing when both the main power and sub-power switches are turned from OFF to ON.
Colour/B&W: 22 sec. or less Colour/B&W: 25 sec. or less Colour/B&W: 20 sec. or less
*The time required to start printing when the main power switch is ON and the sub-power switch is turned from OFF to ON. Colour/B&W: 22 sec. or less Colour/B&W: 25 sec. or less Colour/B&W: 20 sec. or less Colour/B&W: 18 sec. or less
First Copy Out Time*4 Colour: 4.6 sec. or less
B/W: 4.1 sec. or less
Colour: 5.5 sec. or less
B/W: 4.6 sec. or less
Colour: 6.9 sec .or less
B/W: 5.3 sec. or less
Colour: 7.7 sec .or less
B/W: 5.9 sec. or less
Colour: 8.3 sec .or less
B/W: 6.9 sec .or less
Copy Speed (A4/Letter Crosswise) Colour/B&W: 55 ppm Colour/B&W: 45 ppm Colour/B&W: 36 ppm Colour/B&W: 28 ppm Colour/B&W: 22 ppm
Copy Magnification Fixed Same Magnification 1:1± 0.5% or less
Scaling Up 1: 1.154/1.224/1.414/2.000
Scaling Down 1: 0.866/0.816/0.707/0.500
Preset 3 types
Zoom 25 to 400% (in 0.1% increments)
Lengthwise Crosswise Individual Settings 25 to 400% (in 0.1% increments)
Paper Capacity(80g/m2 paper) Tray 1 500 sheets (up to A3)
Tray 2 500 sheets (up to SRA3)
Multiple Bypass Tray 150 sheets (up to SRA3)
Max. Paper Capacity (80g/m2)*5 6,650 sheets 3,650 sheets
Paper Weight Tray 1 / 2 52 to 256 g/m2
Multiple Bypass Tray 60 to 300 g/m2
Multiple Copy 1 to 9,999 sheets
Auto Duplex Paper Size Width: 100 to 320 mm, Length: 148 to 457.2 mm
Paper Weight 52 to 256 g/m2
Power Requirements AC220 to 240 V 9 A (50 to 60 Hz) AC220 to 240 V 8 A (50 to 60 Hz)
Max. Power Consumption 2.0 kW or less 1.58 kW or less
Dimensions [W] × [D] × [H] 615 × 685 × 921 mm (24-1/4″ × 27-1/2″ × 36-1/4″) 615 × 685 × 779 mm (24-1/4″ × 27-1/2″ × 30-3/4″)
Weight Approx. 101 kg (222-3/4 lb) Approx. 85 kg (187-1/2 lb)
Space Requirements[W] × [D]*6 937 × 1,246 mm (37″ × 49″) 937 × 1,214 mm (37″ × 47-3/4″)
*1 S: Short edge feed
*2 Set by Customer engineer
*3 May vary depending on the operating environment and usage.
*4 A4 crosswise full size/using the first tray/scanning from the original glass surface.
*5 With options installed.
*6 Without options, with paper trays pulled out, and multiple bypass tray, auxiliary tray and ADF opened.
Print Specifications
Type Embedded
CPU SOC 800Mhz (DualCore)
Memory Shared with the copier
Print Speed Same as Copy Speed (when using the same original)
HDD 250 GB (Shared witd tde copier)
Print Resolution 1,800 dpi (equivalent) × 600 dpi (at smoothing) or
1,200 dpi × 1,200 dpi (in 1,200 dpi mode)*1
PDL PCL 5e/c Emulation, PCL 6 Emulation,
PostScript 3 (3016) Emulation, XPS (Ver.1.0)
Protocol TCP/IP, IPX/SPX (NDSsupport), SMB (NetBEUI), LPD, IPP1.1, SNMP, HTTP
Support OS Windows Vista / Vista 64bit / 7 / 7 64bit / 8 / 8 64bit / 8.1 / 8.1 64bit
Windows Server 2003 / Server 2003 64bit / Server 2003 R2 / Server 2003 R2 64bit / Server 2008 / Server 2008 64bit / Server 2008 R2 / Server 2012 / Server 2012 R2
Mac OS 9.2 / X 10.2 / X 10.3 / X 10.4 / X 10.5 / X 10.6 / X 10.7 / X 10.8 / X 10.9
Linux
Fonts PCL 80 Roman fonts
PS 137 Roman Type1 fonts
Interface Ethernet (10BASE-T/100BASE-TX/1000BASE-T), USB 1.1, USB 2.0, USB Host
*1 Output speed will be reduced. (C364e/C264e/C224e)
Scanning Specifications
Type Full-Colour Scanner
Interface Ethernet (10BASE-T/100BASE-TX/1000BASE-T)
Driver TWAIN Driver, HDD TWAIN Driver
Protocol TCP/IP (FTP, SMB, SMTP, WebDAV) (IPv4/IPv6)
Scanning Speed
(300 dpi, A4 Crosswise)
Simplex 80 opm
Duplex 160 opm
Scanning Size Max. A3 (11″ × 17″)
Output Format TIFF, JPEG, PDF, Compact PDF, XPS, Compact XPS, OOXML (pptx, xlsx*, docx*), Searchable PDF*, PDF/A*, Linearised PDF* *Optional
Scanning Resolution Push 200dpi / 300dpi / 400dpi / 600dpi
Pull 100dpi / 200dpi / 300dpi / 400dpi / 600dpi
Main Functions Scan to E-Mail, Scan to FTP, Scan to BOX (HDD), Scan to PC (SMB), Network TWAIN, Scan to WebDAV, Scan to Me, Scan to Home, Scan to USB, Scan to Scan Server, Scan to Web Service (WSD-Scan), Device Profile for Web Services (DPWS)
Other Functions Multi-Method Send, Authentication at the time of E-Mail send (SMTP authentication, POP before SMTP), S/MIME, Annotation
Internet Fax
Protocol SMTP, POP
Connection Mode Full-Mode
Sending Paper Size A3, B4, A4
Recording Paper Size Max. A3
Resolution 200 × 100 dpi, 200 × 200 dpi, 400 × 400 dpi, 600 × 600 dpi
Interface Ethernet (10BASE-T/100BASE-TX/1000BASE-T)
Colour Support Colour Internet Fax
Format Send: TIFF-F, Receive: TIFF-F ,Colour/Grey Scale: TIFF (RFC3949 Profile-C)
Fax Kit FK-511 (Optional)
Communication Super G3
Compatible Lines Public Switch Telephone Network, Private Branch Exchange, Fax Communication Line
Line Density G3 (8 dot/mm × 3.85 line/mm, 600 × 600 dpi)
Modem Speed 2.4 to 33.6 kbps
Compression MH/MR/MMR/JBIG
Sending Paper Size Max. A3 (Long Lengtd Support: Max.1,000 mm)
Recording Paper Size Max. A3 (Long Lengtd Max. 1,000 mm — following the page division —)
Transmission Speed Less than 3 sec. (A4, V.34, 33.6 kbps, JBIG)
Memory Shared witd the copier
Number of Abbr. Dials 2,000
Number of Program Dials 400
Number of Group Dials 100
Sequential Multiple Station Transmission Max. 600
IP Address Fax *Optiona Fax Kit FK-511 is required.
Protocol Transmission SMTP
Sending Paper Size A3, B4, A4
Resolution 200 × 200 dpi, 400 × 400 dpi, 600 × 600 dpi
Format Send: TIFF-F, Receive: TIFF-F,
Colour/Grey Scale: TIFF (RFC3949 Profile-C)
Fiery Image Controller IC-414 (Optional) * Optional Video Interface Kit VI-506 is required.
Type Embedded
CPU Intel Pentium E5300 2.60 GHz
Memory 2 GB
HDD 160 GB
Print Speed Same as Copy Speed (when using the same original)
Print Resolution 1,800 dpi (equivalent) × 600 dpi (at smoothing) or
1,200 dpi × 1,200 dpi (in 1,200 dpi mode)*1
PDL PCL 6, Adobe PostScript 3 (3019)
Protocol Ethernet (Apple Talk, TCP/IP), HTTP/HTTPS, SSL/TLS for HTTPS, SMB, Port9100 (Bi-Directional), IPP, LDAP, IPV6, SNMP v3
Support OS Windows Vista / Vista 64bit / 7 / 7 64bit / 8 / 8 64bit / 8.1 / 8.1 64bit
Windows Server 2003 / Windows Server 2003 64bit / Server 2008 / Server 2008 R2 / Server 2012 / Server 2012 R2
Mac OS X 10.4.11 / X 10.5 / X 10.6 / X 10.7 / X 10.8 / X 10.9
Fonts Adobe PS 138 Roman fonts, Agfa PCL 80 Roman fonts and 1 bitmap font,
Additional PCL 35 fonts, Euro Currency Resident Font
Interface Ethernet (10BASE-T/100BASE-TX/1000BASE-T), USB
*1 Output speed will be reduced. (C364e/C264e/C224e)
