Bizhub 4750/4050

03
01020405

Bizhub 4750/4050

Also compatible with office wireless LAN environment
Use the NC-P03 wireless LAN option to connect to office wireless environments. This allows unrestricted installation in areas that do not have LAN wiring, and where it is difficult to install LAN cables. This product can also be used as an access point to create a wireless LAN environment.
* The optional Mount Kit MK-06 is required. If it is used as an access point, it cannot be used as a client.

Compatible with bizhub Connector to use Cloud environment
These models are compatible with the bizhub Connector (option) application, for linkage with Cloud services. Use the control panel to directly access Cloud services. Upload scanned data with one operation, without ever using a PC, and print data from the Cloud, for better working efficiency.

Mopria Print Service
Devices running Android 4.4 or later OS versions can output printing without going through a printer driver.

Google Cloud Print
iOS and Android devices and PCs can print via the Internet without going through a printer driver.
* Setup using Google Cloud Print Setup is required.
* Optional i-Option LK-101 v3 is required.

Konica Minolta Print Service
Standard Android print functions can print directly to bizhub.
* Android version 4.4 or later.

PageScope Mobile for bizhub to mobile device connectivity
Use PageScope Mobile for Android or PageScope Mobile for iPhone/iPad free of charge from Konica Minolta for smooth wireless connectivity with mobile devices such as smartphones and tablet devices. PDFs and image data*1 stored in a mobile device can be printed wirelessly from a bizhub MFP/printer, and scanned data from the bizhub MFP can be viewed from a mobile device.
*1 Printable formats: PDF / TIFF / JPEG / XPS

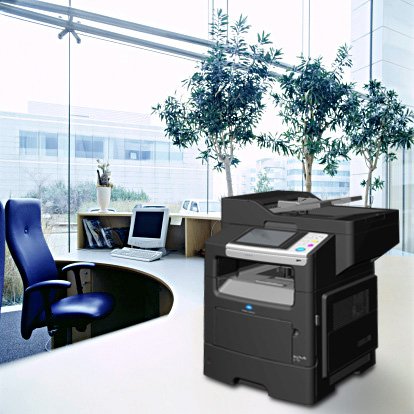

Ideal as a main machine for small offices
The bizhub 4750 / 4050 can be used as highly functional, highly productive, space saving monochrome centre machines for small offices that mainly use A4, letter and legal paper.

Superb networking for medium to large offices
For offices and medium to large workgroups that demand higher quality outputs and greater productivity, the bizhub 4750 / 4050 can be used together with A3 MFPs as sub machines to streamline outputs.

Increase productivity with an integrated device management solution
With PageScope Enterprise Suite 3.1, administrators can enhance efficiency by centrally managing the bizhub 4750 /4050 and all other networked digital devices including A3 MFPs. (For more details, please refer to P6 & P7.)

Intuitive large touch panel display
The bizhub 4750 / 4050 deliver the similar user-friendly operability as the bizhub A3 MFPs thanks to the INFO-Palette design smart user interface. The 7-inch electrostatic colour touch panel display provides seamless and intuitive usability even for first-time users with smartphone-like tap & flick operation.

Browse on the control panel
The large 7-inch screen of the control panel can be used for Internet browsing.
* Optional i-Option LK-101 v3 is required.

High-speed, high-quality
Get high-speed outputs of 47 ppm (A4) with the bizhub 4750 and 40 ppm (A4) with the bizhub 4050 at 600 × 600 dpi. In addition, 1,200 × 1,200 dpi high-resolution is also available for higher quality outputs. PCL6 emulation – often used for business – and PostScript3 emulation are also supported to provide an enhanced range of outputs.

Colour scanner and RADF
A 30-opm colour (45-opm monochrome) high-speed colour scanner and RADF (Recirculating Automatic Document Feeder) are standard equipped for quick scanning of high volume business documents. In addition, colour faxes can easily be sent with the standard Internet Fax function in an Internet environment. The bizhub 4750 / 4050 can even be used as a Super G3 fax machine with the optional Fax Kit.

Stapling and high paper capacity
Boost productivity with the stapling function and extra paper cassettes within the same compact footprint. The optional compact stapler handles up to 20 sheets of paper and can be installed on the backside of the main unit. The standard 550-sheet paper capacity can be increased with a 100-sheet manual feeding tray and three optional 550- and/or 250-sheet paper feeding units. (maximum capacity 2,300 sheets)

Tighten security with IC card authentication
The bizhub 4750 / 4050’s authentication features enhance security and device management, crucial for medium to large workgroups. They even share the same IC card authentication system as the larger bizhub C754e series and C554e series A3 colour MFPs and new bizhub C3850 / 3350 A4 colour MFPs for centralised security using IC cards such as employee ID cards across all networked bizhub MFPs.

Direct USB printing
There’s no need to bring large volumes of hard copy documents to branch offices. Files can be stored in a USB memory device and printed directly from the USB port on the front of the bizhub’s control panel.

Expand functions with i-Option
i-Option expands the potential of the bizhub with extensions such as Barcode fonts, Unicode fonts, OCR fonts and ThinPrint function. The required extensions can be installed easily.

Optimal device placement for lower TCO and environmental performance
Konica Minolta’s Optimised Print Services (OPS) promotes greater business efficiency through optimal device placement and reduced TCO. Optimally placing more eco-conscious devices also reduces power costs.

Cost-effective A4 monochrome outputs
The bizhub 4750/4050 deliver outstandingly low TCO by saving both initial costs and running costs.

Also compact for low environmental impact
The bizhub 4750/4050 employ functions that help reduce toner and paper use during printing.
They are also certified by numerous environmental programmes and support environmental systems from around the world, including the International Energy Star standard, Germany’s Blue Angel Mark, The Eco Declaration – Europe’s declaration system for IT products.

download

Product Description

Specifications

General Specifications
bizhub 4750 bizhub 4050
Type Desktop Printer / Copier / Scanner
Copy Resolution Scan Main: 600 dpi × Sub: 600 dpi
Print Main: 600 dpi × Sub: 600 dpi
Gradation 256
Memory Capacity (Std./Max.) 2 GB / 2 GB
HDD 320 GB
Original Type Sheets, Books, Objects
Max. Original Size A4 or Legal (8-1/2″ × 14″)
Output Size Legal, Letter, A4 to A6
Custom: 76.2 × 127 mm to 216 × 356 mm)
Image Loss Copy Max. 4.0 mm ±2 mm for top / bottom / right / left edges
Print Max. 4.2 mm ±2 mm or less for top / bottom / right / left edges
Warm-Up Time1 77 sec. or less
First Copy Out Time2 8.5 sec. or less
Copy Speed (A4) 47 ppm 40 ppm
Copy Magnification Fixed Same Magnification 1: 1.000
Scaling Up 1: 1.154 / 1.224 / 1.294 / 1.414 / 1.545 / 1.631 / 2.000
Scaling Down 1: 0.866 / 0.816 / 0.785 / 0.707 / 0.647 / 0.607 / 0.500
Preset 3 types
Zoom 25 to 400% (in 0.1% increments)
Lengthwise Crosswise Individual Settings 25 to 400% (in 0.1% increments)
Paper Capacity(75 g/m2) Tray 1 550 sheets (up to Legal)
Multiple Bypass Tray 100 sheets (up to Legal)
Max. Paper Capacity (75g/m2) 2,300 sheets
Paper Weight Tray 1 60 to 120 g/m2
Multiple Bypass Tray 60 to 163 g/m2
Multiple Copy 1 to 999 sheets
Auto Duplex Type Non-Stack
Paper Size Legal, Letter, A4
Paper Weight 60 to 90 g/m2
Power Requirements AC220 to 240 V 4.2 A (50 to 60 Hz)
Max. Power Consumption 972 W or less 926 W or less
Dimensions [W] × [D] × [H] 489 × 482 × 561 mm (19-1/4″ × 19″ × 22″)
Weight Approx. 24 kg (52 lb)
Space Requirements3 [W] × [D] 669 × 886.8 mm (26-1/4″ × 35″)
1 Warm-up time may vary depending on the operating environment and usage.
The time required to start printing when both the main power andsub-power switches are turned from OFF to ON. (23°C, std. voltage)
2 A4 full size/using the first tray/scanning from the original glass surface.
3 Without options, with paper trays pulled out, and multiple bypass tray, auxiliary tray and ADF opened.
Print Specifications
Type Embedded
CPU 88PA6170 (800 MHz)
Memory Shared with the copier
Print Speed Same as Copy Speed (when using the same original)
HDD 320 GB (Shared with the copier)
Print Resolution Default mode: 600 dpi × 600 dpi
High Quality mode*1: 1,200 dpi × 1,200 dpi
PDL PCL 5e/c Emulation, PCL 6 Emulation,
PostScript3 (3016) Emulation, XPS (Ver.1.0), PPML/GA2.2,
PPML VDX, OpenXPS, PDF1.7, OOXML(docx, xlsx, pptx)
Protocol TCP/IP, LPD, IPP1.1, HTTP, WSD
Support OS PCL Windows Vista (x32, x64) / 7 (x32, x64) / 8 (x32, x64) / 8.1 (x32, x64) /
Windows Server 2003 (x32, x64) / Server 2008 (x32, x64) /
Server 2012 (x32, x64)
PS Windows Vista (x32, x64) / 7 (x32, x64) / 8 (x32, x64) / 8.1 (x32, x64)
Windows Server 2003 (x32, x64) / Server 2008 (x32, x64) / Server 2012 (x32, x64)
Mac OS X 10.3 / X 10.4 / X 10.5 / X 10.6 / X 10.7 / X 10.8 / X 10.9
Linux
XPS Windows Vista (x32, x64) / 7 (x32, x64) / 8 (x32, x64) / 8.1 (x32, x64)
Windows Server 2008 (x32, x64) / Server 2012 (x32, x64)
Fonts PCL 80 Roman fonts
PS 137 Roman Type1 fonts
Interface Ethernet (10BASE-T / 100BASE-TX / 1000BASE-T), USB 1.1, USB 2.0
1 Output speed will be reduced.
Scanning Specifications
Type Full-Colour Scanner
Interface Ethernet (10BASE-T/100BASE-TX/1000BASE-T)
Driver TWAIN Driver
Protocol TCP/IP (FTP, SMB, SMTP, WebDAV), TCP Socket WSD
Scanning Speed (A4, 300 dpi) B&W/Colour: 45/30 opm
Scanning Size Max. A4 or Legal (8-1/2″ × 14″)
Output Format TIFF, JPEG, PDF, Compact PDF, XPS, PDF/A
Scanning Resolution Push 200 dpi / 300 dpi / 400 dpi / 600 dpi
Pull 200 dpi / 300 dpi / 400 dpi / 600 dpi
Main Functions Scan to E-Mail, Scan to FTP, Scan to BOX (HDD),
Scan to PC (SMB), Network TWAIN, Scan to WebDAV,
Scan to USB, WSD Scan
Reverse Automatic Document Feeder
bizhub 4750 bizhub 4050
Type Circulatory duplex system
Support Paper Size Legal, Letter, A4 to A6
Custom: 105 × 148 mm to 216 × 356 mm)
Mixed Size Support
Original Set Centre guide
Resolution 600 dpi support
Support Paper Weight 52 to 120 g/m2
Paper Capacity (75 g/m2) Max. 50 sheets
Productivity (A4) Simplex Copy B&W: 47 opm B&W: 40 opm
Scan B&W: 45 opm, Colour: 30 opm B&W: 45 opm, Colour: 13 opm
Duplex Copy B&W: 20 opm B&W: 18 opm
Scan B&W: 20 opm, Colour: 13 opm B&W: 20 opm, Colour: 13 opm
Fax Kit FK-512 (Optional)
Communication Super G3
Compatible Lines Public Switch Telephone Network, Private Branch Exchange,
Fax Communication Line
Line Density G3 (8 dot/mm × 3.85 line/mm, 600 × 600 dpi)
Modem Speed 2.4 to 33.6 kbps
Compression MH / MR / MMR / JBIG
Sending Paper Size Max. A4 or Legal (Long Length Support: Max.1,000 mm (ADF))
Recording Paper Size Max. A4 or Legal
(Long Length Max. 1,000 mm — following the page division —)
Transmission Speed Less than 3 sec. (A4, V.34, 33.6 kbps, JBIG)
Memory Shared with the copier
Number of Abbr. Dials 2,000
Number of Group Dials 100
Sequential Multiple Station Transmission Max. 400
Internet Fax (Optional)*Optional Fax Kit FK-512 is required.
Protocol SMTP, POP
Connection Mode Full-Mode
Sending Paper Size Max. A4 or Legal
Recording Paper Size Max. Legal
Resolution 200 × 100 dpi, 200 × 200 dpi, 400 × 400 dpi, 600 × 600 dpi
Interface Ethernet (10BASE-T / 100BASE-TX / 1000BASE-T)
Format Send: TIFF-F, Receive: TIFF-F
Finisher FS-P02 (Optional)
Type Stapler
Support Paper Size A4, Letter, Legal
Mode Corner staple
Staple Capacity 20 sheets (75 g/m2)
Dimensions [W] × [D] × [H] 410 × 370 × 195 mm (15-1/4″ × 14-1/2″ × 7-3/4″)
(The depth of the finisher includes the projecting parts.)
Weight Approx. 5.3 kg (11.6 lb)
Paper Feeder Unit PF-P11 (Optional)
Support Paper Type (Weight) 60 to 120 g/m2
Support Paper Size Legal, Letter, A4, B5, A5
Custom: 105 × 148 mm to 216 × 356 mm
Paper Capacity (75 g/m2) 250 sheets
Power Requirements Supplied from the MFP main body
Dimensions [W] × [D] × [H] 389 × 382 × 77 mm (15-1/4″ × 15″ × 3″)
Unit Configuration Paper tray, 1 level
Weight Approx. 4.2 kg (9-1/4 lb)
Paper Feeder Unit PF-P12 (Optional)
Support Paper Type (Weight) 60 to 120 g/m2
Support Paper Size Legal, Letter, A4, B5, A5
Custom: 105 × 148 mm to 216 × 356 mm
Paper Capacity (75 g/m2) 550 sheets
Power Requirements Supplied from the MFP main body
Dimensions [W] × [D] × [H] 389 × 382 × 109 mm (15-1/4″ × 15″ × 4-1/4″)
Unit Configuration Paper tray, 1 level
Weight Approx. 4.7 kg (10-1/4 lb)
Authentication Unit (IC Card type) AU-201 (Optional)
Applicable Card ISO 14443 TypeA, FeliCa-based noncontact IC card
Interface USB 1.1 or later
Power Supply Power received from USB port
Dimensions [W] × [D] × [H] 92 × 64 × 16 mm (3-3/4″ × 2-1/2″ × 3/4″)
Weight Approx. 120 g (264-1/2 lb)
